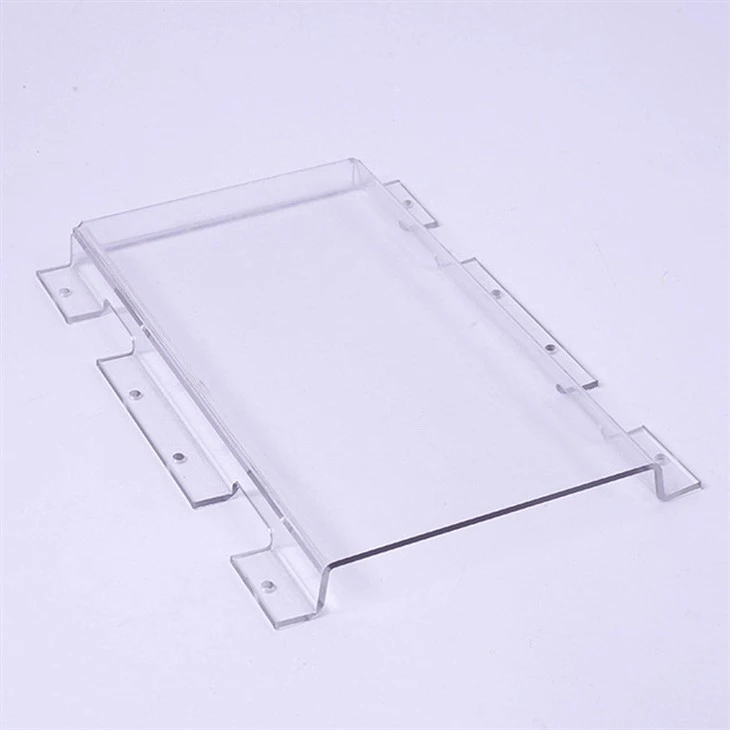

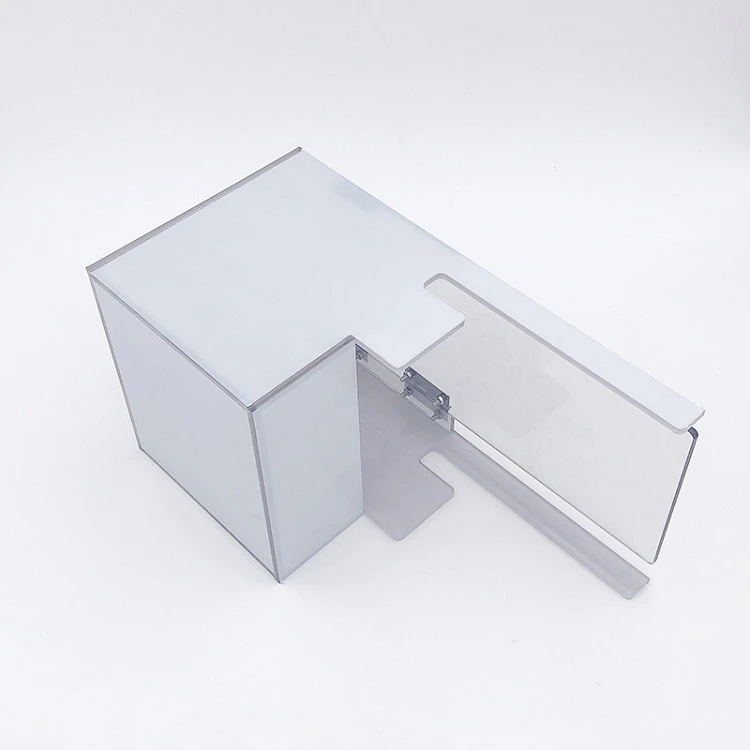

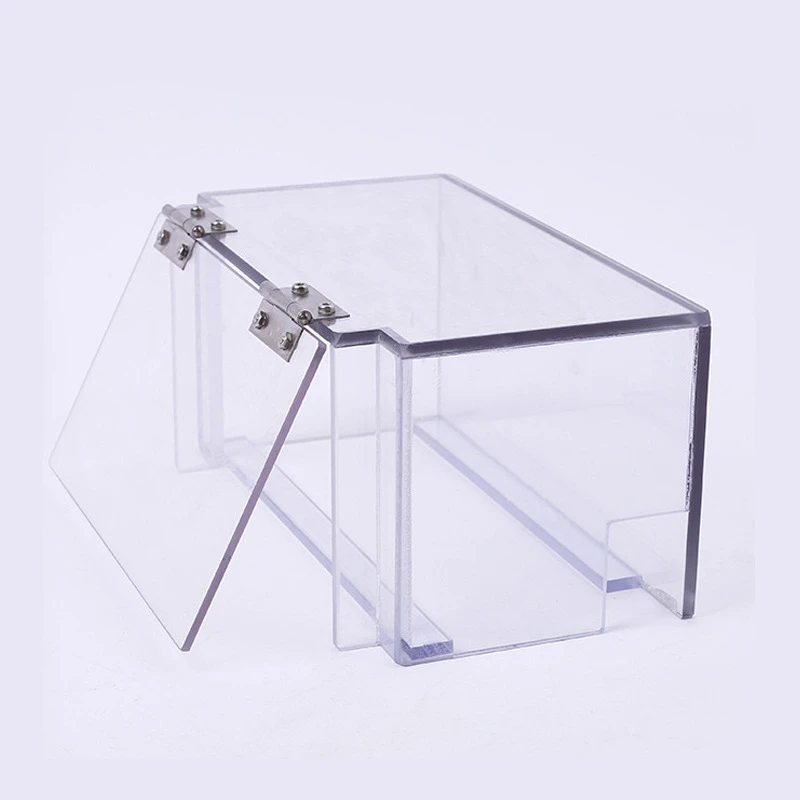

CNC Acrylic Parts

Customized CNC acrylic parts, acrylic packaging storage box, transparent plastic box.

We provide customized solutions for different industries, from aerospace, medical components, electronics to the new energy industry, and more. CNC machining ensures the accuracy and quality of products.

At XYC, our ISO certified CNC workshop is specifically designed for rapid prototyping and small batch production of end use components. XYC CNC Factory provides you with 24-hour quotation service and rapid production of samples. We are your best choice for machining parts and can customize manufacturing according to your project requirements.

Acrylic, also known as plexiglass, organic board, etc., is a kind of polymer material, which is widely used in advertising, home furnishing, industry, medical and other fields. Acrylic has become one of the indispensable materials in modern life due to its high transparency, good heat resistance, strong impact resistance and easy molding.

1. high transparency: the light transmittance of acrylic plate is as high as 92%, which is close to the transparency of glass, so it is called "Plexiglas".

2. good heat resistance: acrylic material can keep the integrity of the material at high temperature, and its temperature resistance can reach 60 ℃ -70 ℃.

3. strong impact resistance: acrylic material is not easy to crack, and even if it is broken, it will not form sharp fragments, with certain safety performance.

4. easy to form: the forming process of acrylic material is simple, and it can be processed by cutting, punching, sawing, bending and other methods, which is conducive to factory production and customized processing.

5.good aging resistance: acrylic material is not easy to age and deform, and has excellent UV resistance, and is not easy to fade and turn yellow.

Can acrylic be CNC machined?

Acrylic can undergo CNC machining. Acrylic, also known as organic glass or PMMA (polymethyl methacrylate), is a commonly used material in CNC machining processes. CNC (Computer Numerical Control) machining is a material reduction manufacturing method that uses computer-controlled machines to remove materials from solid blocks or sheets to create the desired shape or design.

Acrylic has become a popular choice for CNC machining due to its excellent characteristics such as transparency, durability, and ease of processing. Compared to metals, it is relatively soft and can be easily cut, drilled, milled, or carved using CNC machines. It also has good dimensional stability and can maintain its shape and size during mechanical processing.

When CNC machining acrylic, it is important to use appropriate cutting tools and machining parameters to avoid heat accumulation, melting, or fragmentation. Special tools such as single groove drill bits or spiral groove drill bits are usually used to achieve cleaning and precise cutting of acrylic. In addition, using appropriate cooling and chip removal techniques can help prevent overheating and ensure smooth processing.

Overall, acrylic is a material suitable for CNC machining, which can be processed into various shapes, prototypes, or finished products using the correct tools and techniques.

What is the best way to mill acrylic?

Acrylic, also known as polymethyl methacrylate (PMMA), is a material widely used in CNC machining. When it comes to processability, the best type of acrylic acid is usually referred to as "cast acrylic acid" or "unit cast acrylic acid". Cast acrylic is produced through a casting process, in which liquid acrylic is poured into a mold and slowly solidified to form a solid sheet.

Casting acrylic has several advantages that make it very suitable for CNC machining:

Uniformity: Cast acrylic plates have consistent composition and structure, ensuring uniform machinability and predictable results.

Low internal stress: Cast acrylic is known for its low internal stress, which reduces the chance of warping or cracking during processing. This makes it more stable and easier to use.

High definition: Cast acrylic has excellent optical clarity and transparency, making it a popular choice for applications that focus on visual aesthetics.

Wide thickness range: Cast acrylic panels have multiple thicknesses to choose from, enabling flexibility in design and processing projects.

The availability of colors and finishes: Cast acrylic has multiple colors to choose from, including transparent, semi transparent, and opaque options. In addition, it also has different surface finishes, such as glossy, matte, or textured, to meet specific requirements.

Can CNC cut acrylic?

The process of using CNC to cut acrylic is as follows:

Design and preparation: Firstly, it is necessary to create or import the required cutting graphics in computer-aided design (CAD) software. Ensure that the size and proportion of the graphics match the requirements of the final product. Then, import the design file into the CNC control software.

Material fixation: Fix the acrylic material on the workbench of the CNC machine tool. Materials can be fixed using clips, double-sided tape, or vacuum fixtures to ensure their stability during the cutting process.

Tool selection: Choose a suitable tool for acrylic cutting. Usually, single or double-edged tools with smaller diameters are used to cut acrylic. Ensure that the cutting tool is sharp and suitable for cutting acrylic materials.

Cutting parameter setting: Set appropriate cutting parameters based on the thickness of the acrylic material and the required cutting quality. These parameters include cutting speed, feed rate, and cutting depth. According to the specifications and cutting requirements of the machine, some tests and adjustments may be required.

Run CNC program: Use CNC control software to load design files and set the required cutting tool path and cutting parameters. Then, start the CNC machine tool and perform automatic cutting operations.

Inspection and cleaning: After completing the cutting, carefully check the cutting quality and accuracy. Clean up cutting debris and parts on the workbench and materials for the next cutting task.

Please note that maintaining appropriate cooling is crucial when cutting acrylic, as Scottish materials may overheat and melt. Cooling liquid or jet cooling system can be used to reduce the temperature of the cutting area.

Overall, CNC is an effective acrylic cutting method. It can provide high-precision, repeatable, and automated cutting processes, suitable for producing parts, models, or other acrylic products.
